Breathtaking sound
Our most advanced loudspeaker to date! When only the highest fidelity matters most. Featuring our proprietary DPC-Array controlling Mid/High frequencies and centered by our finest 28mm Beryllium dome and dual 28mm TPCD ultra-lightweight domes. All transducers are developed from the ground up by our engineers, based on decades of research and culminating in this world class design. All S Series speakers share the same DPC-Array and benefit from our unique timbre matching technique. The entire series utilizes our Beryllium dome tweeters and our advanced Carbon fiber bass/mid drivers. These speakers can be configured as bass reflex or acoustic suspension to meet the demands of any listening room for true full-range performance with unparalleled dynamic range and musical finesse.
Thin Ply Carbon Diaphragm
The (TPCD) TexTreme carbon fiber used in our midrange drive units is also the key to the performance of our woofers, resulting in lighter-than-air dynamics and the impact you expect in a flagship Speaker that can play down to 20Hz in-room. This technology is 30% lighter than standard carbon fiber of the same thickness, with increased strength from using the unique process of stacking multiple layers. The unique weave is unmistakable and distributes break-up modes without sharp response peaks, while extending bandwidth. Simply perfect.

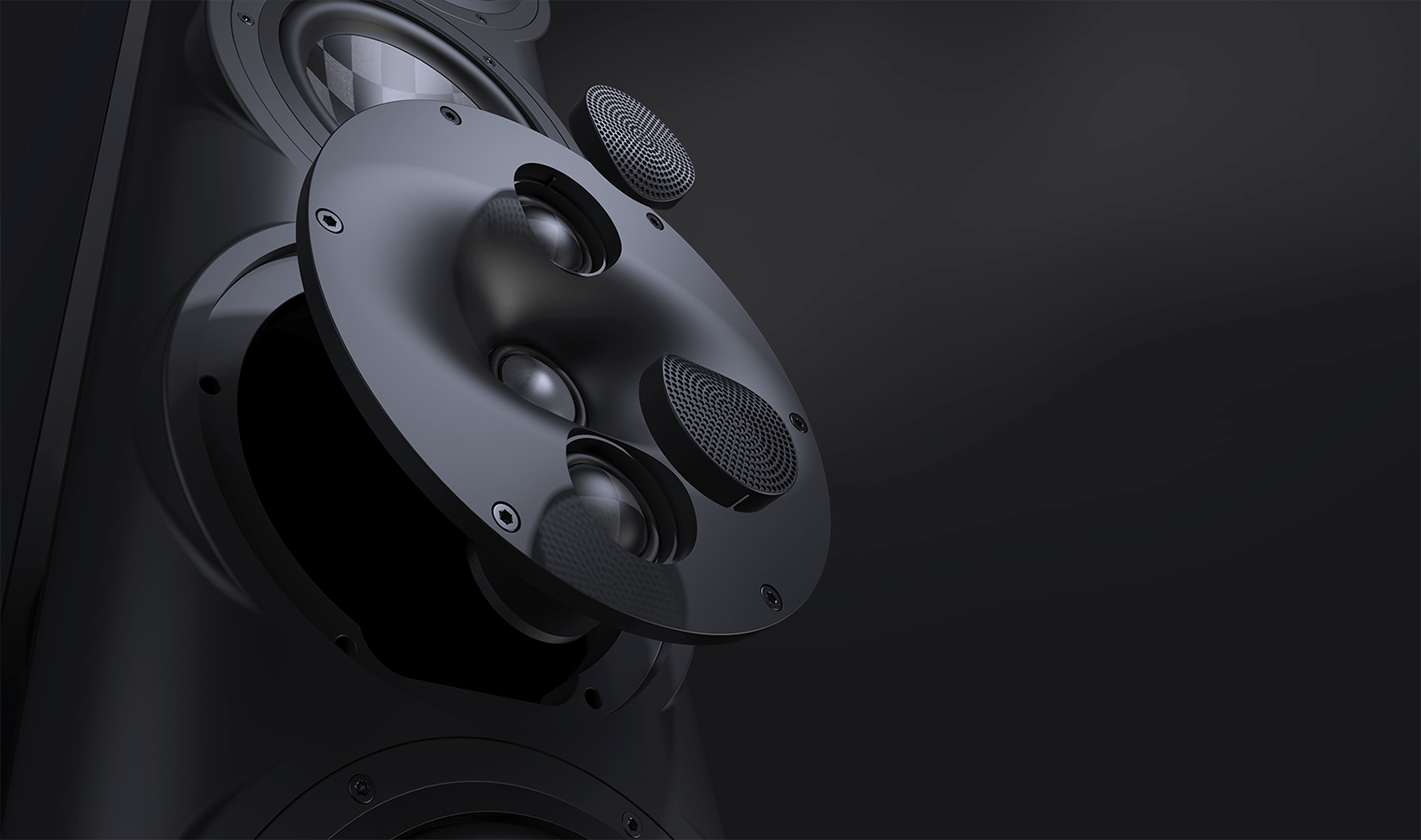

Directivity Pattern Control
DPC (Patent Pending) – We teamed up with companies in the USA and Sweden to bring modern materials technology to hi-fi, utilizing advanced Comsol acoustic modeling. The DPC array is the result of 18 months of painstaking simulations. We just love it and think you will, too.
Beryllium, covering the widest bandwidth up to ultrasonic frequencies, our finest 28mm Beryllium dome takes center stage. Beryllium is one of the strongest materials known to man and does not suffer from the typical harsh break-up modes of other metals due to its outstanding damping characteristics. Accurate, undistorted, and revealing.
TPCD Carbon Fiber – The Beryllium tweeter is flanked by our dual 28mm TPCD ultra-lightweight Carbon fiber midrange domes. Allowing the crossover point to extend more than an octave lower than typical domes, fast, lightweight and without beaming caused by larger diaphragms.
Waveguide lens – all of this technology wouldn’t be worth it without the waveguide orchestrating the directional characteristics of the array. Presenting a coherent wavefront, while optimizing early reflections and sound power, to bring vocal reproduction to an altogether new level.
Superior quality
It takes more than just world-class materials to make world-class sound. It takes quality that lets you know that your speakers will never fail you in the middle of a dynamic crescendo or when experiencing the delicate subtlety of a triangle in your favorite orchestra. We demand this from our products, so you don’t have to.
Compare speakers
Bookshelf speakers
 |  | |
| Technical specifications |  |  |
| Enclosure alignment | 3-way acoustic suspension | 3-way acoustic suspension |
| Driver compliment | DPC-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm Textreme TPCD | DPC Array: 26mm(3) Silk dome Woofers: 165mm HPF diaphragm |
| Sensitivity(2pi) | 85.4dB / 2.83v / 1.0m | 84.6dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.2Ω min | 4Ω nominal / 3.8Ω min |
| Frequency Response (+/-1.5dB) | 100 - 20kHz Listening Window | 80 - 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | 36 - 37kHz | 80 - 20kHz +/-1.5dB window |
| Typical in room bass extension | 30Hz | 38Hz |
| Dimensions (HxWxD) | 420 x 240 x 185mm 16.5 x 9.5 x 7.3" | 382 x 230 x 236mm 15.0 x 9.0 x 9.3" |
| Weight | 11.0 kg (24.2 lbs.) | 9.5 kg (20.9 lbs.) |
| Recommended Amplifier Power | 50 - 300W RMS | 50 - 200W RMS |
| SPL capability (100-20kHz) | 111dB peak <2% - 2nd, 3rd Harmonics | 107.6dB peak <3% - 2nd, 3rd Harmonics |
| Certification | THX Dominus | THX Ultra |
| Available finishes | Piano black, Gloss white | Piano black, Gloss white |
| Datasheet | View | View |
Center speakers
 |  | |
| Technical specifications |  |  |
| Enclosure alignment | 4-way acoustic suspension | 3-way acoustic suspension |
| Driver compliment | DPC-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(4) Textreme TPCD | DPC-Array: 26mm(3) Silk dome Woofers: 165mm(2) HPF diaphragms |
| Sensitivity | 92dB / 2.83v / 1.0m | 88.6dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.2Ω min | 4Ω nominal / 3.4Ω min |
| Frequency Response (+/-1.5dB) | 80 - 20kHz | 80 - 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | 38 - 37kHz | 49 - 32kHz |
| Typical In Room bass extension | 32Hz | 44Hz |
| Dimensions (HxWxD) | 960 x 240 x 400mm 37.8 x 9.5 x 15.7" | 240 x 550 x 270mm 9.5 x 21.6 x 10.6" |
| Weight | 33.5 kg (74 lbs.) | 15.0 kg (33.0 lbs.) |
| Recommended Amplifier Power | 100 - 600W RMS | 100 - 250W RMS |
| SPL Capability (100-20kHz) | 117dB peak <2% - 2nd, 3rd Harmonics | 112.6dB peak <3% - 2nd, 3rd Harmonics |
| Certification | THX Dominus - LCR | THX Dominus, THX Ultra |
| Available finishes | Piano black, Gloss white | Piano black |
| Datasheet | View | View |
Monitor speakers
 |  | |
| Technical specifications |  |  |
| Enclosure alignment | 3-way bass reflex / acoustic suspension | 3-way bass reflex / acoustic suspension |
| Driver compliment | DPC Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(2) Textreme TPCD | DPC-Array: 26mm(3) Silk dome Woofers: 165mm(2) HPF diaphragms |
| Sensitivity | 89.6dB / 2.83v / 1.0m | 89.2dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.0Ω min | 4Ω nominal / 2.7Ω min |
| Frequency Response (+/-1.5dB) | 80 - 20kHz Listening window | 80 - 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | Bass reflex: 35 - 37kHz Acoustic suspension: 41 - 37kHz | Bass reflex: 40 - 32kHz Acoustic suspension: 47 - 32kHz |
| Typical in room bass extension | Bass reflex: 29Hz Acoustic suspension: 32Hz | Bass reflex: 37Hz Acoustic suspension: 43Hz |
| Dimensions (HxWxD) without stand | 600 x 240 x 400mm 23.6 x 9.5 x 15.7" | 546 x 230 x 336mm 21.5 x 9.0 x 13.2" |
| Weight | 19.0 kg (41.8 lbs.) | 17.5 kg (38.5 lbs.) |
| Recommended Amplifier Power | 50 - 300W RMS | 100 - 250W RMS |
| SPL capability (100-20kHz) | 117dB peak <2% - 2nd, 3rd Harmonics | 113.2dB peak <3% - 2nd, 3rd Harmonics |
| Certification | THX Dominus, THX Ultra | THX Dominus, THX Ultra |
| Available finishes | Piano black, Gloss white | Piano black |
| Datasheet | View | View |
Surround speakers
 |  | |
| Technical specifications |  |  |
| Enclosure alignment | 3-way acoustic suspension | 3-way acoustic suspension |
| Driver compliment | DPC Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm Textreme TPCD | DPC-Array: 26mm(3) Silk dome Woofers: 165mm HPF diaphragm |
| Sensitivity(2pi) | 88.8dB / 2.83v / 1.0m | 86.5dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.2Ω min | 4Ω nominal / 3.7Ω min |
| Frequency Response (+/-1.5dB) | 100 - 20kHz Listening Window | 300 - 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | 39 - 37kHz | 48 - 32kHz |
| Typical In Room bass extension | 33Hz | 42Hz |
| Dimensions (HxWxD) | 405 x 240 x 185mm 15.9 x 9.5 x 7.3" | 378 x 230 x 173mm 14.9 x 9.0 x 6.8" |
| Weight | 9.5 kg (20.9 lbs.) | 9.5 kg (20.9 lbs.) |
| Recommended Amplifier Power | 50 - 300W RMS | 50 - 200W RMS |
| SPL capability (100-20kHz) | 111dB peak <2% - 2nd, 3rd Harmonics | 109.5dB peak <3% - 2nd, 3rd Harmonics |
| Certification | THX Dominus, THX Ultra | THX Ultra |
| Available finishes | Piano black, Gloss white | Piano black, Gloss white |
| Datasheet | View | View |
Tower speakers
 |  |  |  | |
| Technical specifications |  |  |  |  |
| Dimensions (HxWxD) | 1295 x 240 x 400mm 51.0 x 9.5 x 15.7" | 1268 x 230 x 350mm 49.9 x 9.0 x 13.7" | 1119 x 240 x 400mm 44.1 x 9.5 x 15.8” | 1100 x 230 x 350mm 43.3 x 9.0 x 13.7" |
| Weight | 55.7 kg (122.5 lbs.) | 48.0 kg (105.6 lbs.) | 43.2 kg (95.1 lbs.) | 26.5 kg (58.3 lbs.) |
| Available finishes | Piano black, Gloss white | Piano black | Piano Gloss Black, White Special Edition Veneers | Piano black |
| Enclosure alignment | 4-way bass reflex / acoustic suspension | 4-way bass reflex / acoustic suspension | 3-way bass reflex / acoustic suspension | 3-way bass reflex / acoustic suspension |
| Driver compliment | DPC-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(4) Textreme TPCD | DPC-array: 26mm(3) Silk dome Woofers: 165mm(4) HPF diaphragms | DPC Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(2) Textreme TPCD | DPC-Array: 26mm(3) Silk dome Woofers: 165mm(2) HPF diaphragms |
| Sensitivity | 92.2dB / 2.83v / 1.0m | 90.0dB / 2.83v / 1.0m | 89.5dB / 2.83v / 1.0m | 89.0dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.2Ω min | 4Ω nominal / 3.1Ω min | 4Ω nominal / 3.0Ω min | 4Ω nominal / 3.2Ω min |
| Response linearity (+/-1.5dB) | 80 - 20kHz | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | Bass reflex: 22 - 37kHz Acoustic suspension: 32 - 37kHz | Bass reflex: 27 - 32kHz Acoustic suspension: 38 - 32kHz | Bass reflex: 24 - 32kHz Acoustic suspension: 36 - 32kHz | Bass reflex: 24 - 32kHz Acoustic suspension: 38 - 32kHz |
| Typical in room bass extension | Bass reflex: 16Hz Acoustic suspension: 23Hz | Bass reflex: 19Hz Acoustic suspension: 30Hz | Bass reflex: 20Hz Acoustic suspension: 23Hz | Bass reflex: 21Hz Acoustic suspension: 32Hz |
| Recommended Amplifier Power | 100 - 600W RMS | 100 - 400W RMS | 100 - 300W RMS | 100 - 250W RMS |
| SPL capability (100-20kHz) | 117dB peak <2% - 2nd, 3rd Harmonics | 116.0dB peak <3% - 2nd, 3rd Harmonics | 114.3dB peak 114.0dB peak <3% - 2nd, 3rd Harmonics | 113.0dB peak <3% - 2nd, 3rd Harmonics |
| Certification | THX Dominus | THX Dominus, THX Ultra | THX Dominus, THX Ultra | THX Dominus, THX Ultra |
| Datasheet | View | View | View | View |
In-Wall
 | R4i-LCRS | R5i-LR | R5i-C | |||||
| Technical specifications |  | |||||||
| Dimensions (HxWxD) | 479 x 298 x 111mm 18.9 x 11.8 x 4.4” | 665 x 298 x 111mm 26.2 x 11.8 x 4.4” | 298 x 665 x 111mm 11.8 x 26.2 x 4.4” | 1036.6 x 298.6 x 111.2mm 40.8 x 11.8 x 4.4” | 298.6 x 1036.6 x 111.2mm 11.8 x 40.8 x 4.4” | 479 x 298 x 111mm 18.9 x 11.8 x 4.4" | 665 x 298 x 111mm 26.2 x 11.8 x 4.4" | 298 x 665 x 111mm 11.8 x 26.2 x 4.4" |
| Mounting dimensions (HxWxD) | 438 x 257 x 101.7mm 17.2 x 10.1 x 4.0” | 624 x 257 x 101.7mm 24.6 x 10.1 x 4.0” | 257 x 624 x 101.7mm 10.1 x 24.6 x 4.0” | 996 x 257 x 101.7mm 39.2 x 10.1 x 4.0” | 257 x 996 x 101.7mm 10.1 x 39.2 x 4.0” | 438 x 257 x 101.7mm 17.2 x 10.1 x 4.0" | 624 x 257 x 101.7mm 24.6 x 10.1 x 4.0" | 257 x 624 x 257 x 101.7mm 10.1 x 24.6 x 4.0" |
| Weight | 11.2 kg 24.6 lbs. | 15.9 kg (35.0 lbs.) | 15.9 kg (35.0 lbs.) | 26.4 kg (58.0 lbs.) | 26.4 kg (58.0 lbs.) | 11.2 kg (24.6 lbs.) | 15.9 kg (35.0 lbs.) | 15.9 kg (35.0 lbs.) |
| Available finishes | White grille, Black baffle | White grille, Black baffle | White grille, Black baffle | White grille, Black baffle | White grille, Black baffle | White grille, Black baffle | White grille, Black baffle | White grille, Black baffle |
| Enclosure Alignment | 3-way acoustic suspension | 3-way acoustic suspension | 3-way acoustic suspension | 4-way acoustic suspension | 4-way acoustic suspension | 3-way acoustic suspension | 3-way acoustic suspension | 3-way acoustic suspension |
| Driver complement | DCP-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(1) Textreme TPCD | DCP-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(2) Textreme TPCD | DCP-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(2) Textreme TPCD | DCP-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(4) Textreme TPCD | DCP-Array: 28mm Beryllium 28mm(2) Textreme TPCD Woofers: 180mm(4) Textreme TPCD | DCP-Array: 26mm(3) Silk dome Woofers: 165mm HPF diaphragm | DCP-Array: 26mm(3) Silk dome Woofers: 165mm(2) HPF diaphragms | DCP-Array: 26mm(3) Silk dome Woofers: 165mm(2) HPF diaphragms |
| Sensitivity (2pi) | 88.0dB / 2.83v / 1.0m | 91.9dB / 2.83v / 1.0m (2pi) | 91.9dB / 2.83v / 1.0m | 92.0dB / 2.83v / 1.0m | 88.8dB / 2.83v / 1.0m | 89.2dB / 2.83v / 1.0m | 89.4dB / 2.83v / 1.0m | |
| Impedance | 4Ω nominal / 3.1Ω min | 4Ω nominal / 3.1Ω min | 4Ω nominal / 3.2Ω min | 4Ω nominal / 3.4Ω min | 4Ω nominal / 3.4Ω min | 4Ω nominal / 3.3Ω min | 4Ω nominal / 2.8Ω min | 4Ω nominal / 3.3Ω min |
| Response Linearity | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window | 100 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window | 80 - 20kHz +/-1.5dB window |
| Frequency Response (-10dB) | 42 - 37kHz | 52 - 37kHz | 50 - 37kHz | 45 - 37kHz | 47 - 37kHz | 46 - 37kHz | 39 - 32kHz | 40 - 32kHz |
| Typical In Room bass extension | 38Hz | 46Hz | 42Hz | 37Hz | 39Hz | 40Hz | 34Hz | 34Hz |
| Recommended Amplifier Power | 50 - 250W RMS | 100 - 350W RMS | 100 - 350W RMS | 100 - 600W RMS | 100 - 600W RMS | 50 - 200W RMS | 50 - 250W RMS | 50 - 250W RMS |
| SPL capability @1m (100-20kHz) | 112.0dB peak 111.0dB peak <3% 2nd, 3rd Harmonics | 117.3dB peak 117.0dB peak <3% 2nd, 3rd Harmonics | 117.0dB peak 117.0dB peak <3% 2nd, 3rd Harmonics | 119.7dB peak 117.0dB peak <3% 2nd, 3rd Harmonics | 119.8dB peak 117.0dB peak <3% 2nd, 3rd Harmonics | 111.8dB peak 111.0dB peak <3% 2nd, 3rd Harmonics | 113.2dB peak 111.0dB peak <3% - 2nd, 3rd Harmonics | 113.4dB peak 111.0dB peak <3% - 2nd, 3rd Harmonics |
| Certification | THX Dominus Surround, Ultra LCR | THX Dominus | THX Dominus | THX Dominus | THX Dominus | THX Dominus Surround, Ultra LCR | THX Dominus, THX Ultra | THX Dominus, THX Ultra |
| Datasheet | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF |
