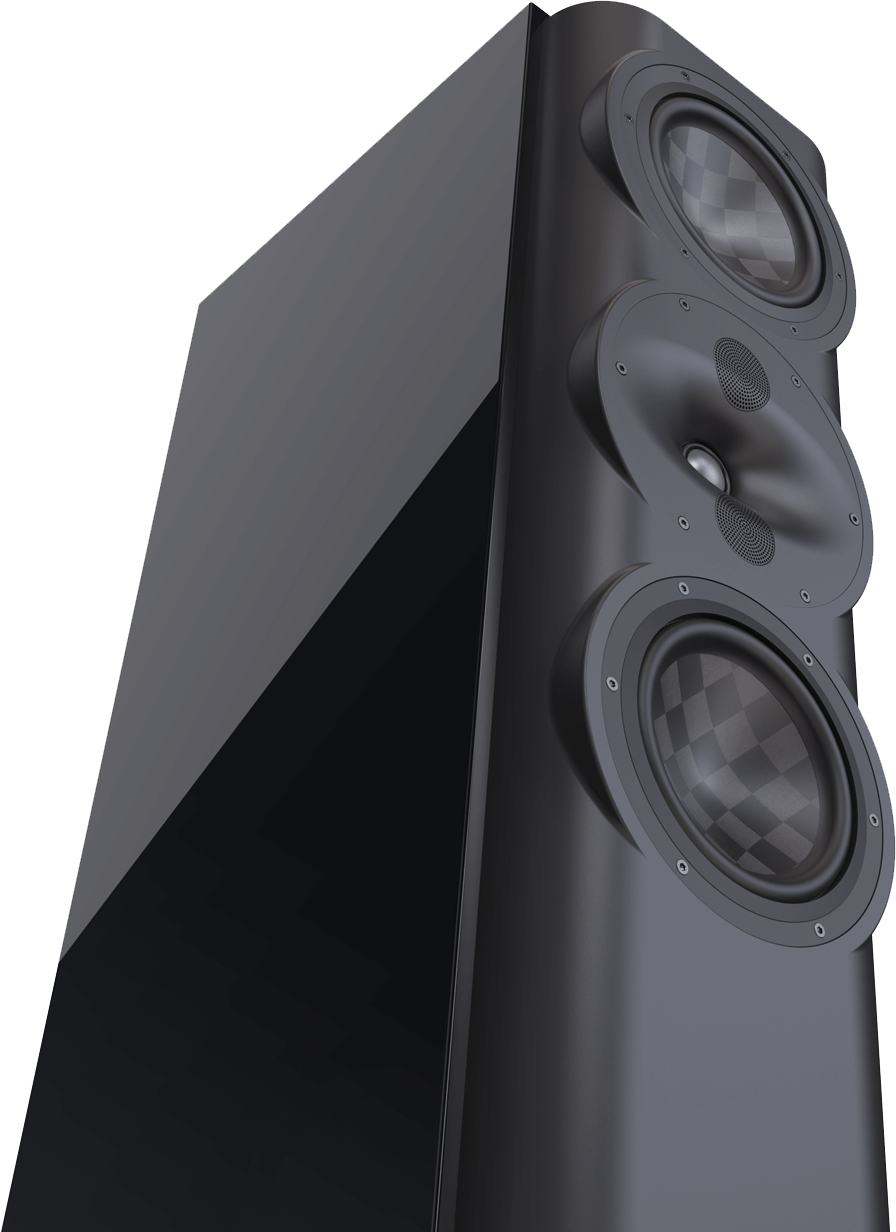

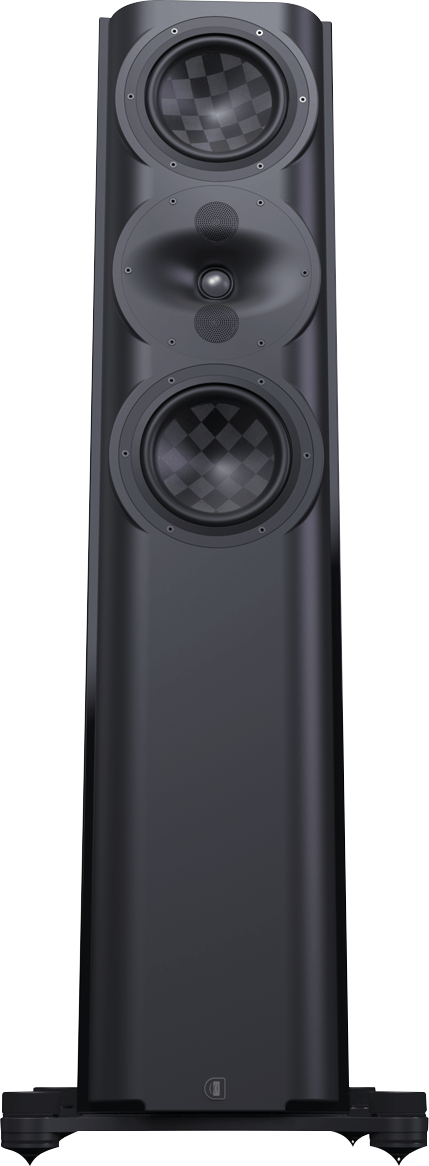

S5t
Tower speaker

With the success of the S7t and R5t, the request for the S5t tower for slightly smaller rooms became too numerous to ignore.  A world class 2-channel little brother to the S7t with nearly the same SPL, sensitivity, and low frequency output.  The S5t can also be sealed or vented for the best integration into any room, and the same exquisite DPC array, for THX certified Dominus surround or Ultra LCR home theater applications.  Proof that a speaker can do both applications seamlessly.

Personalize your speakers to match
your style

We have a variety of different colors to choose from. When picking your speakers, you also need it to match your home and interior. Choose between our standard finishes, wooden finished or get custom painted speakers

Standard finishes

Piano black

It's all in
the details




 Borrowing its technology from our flagship S7t. The more modestly sized S5t mirrors many of the S7t attributes. Featuring our proprietary DPC-Array controlling Mid/High frequencies, centered by our finest 28mm Beryllium dome and dual 28mm TPCD ultra-lightweight domes. All transducers are developed ground up by our engineers – bringing decades of research, culminating in this world class design. We teamed up with companies in the USA and Sweden to bring modern material science to hi-fi. Utilizing advanced Comsol acoustical modeling, our DPC-array is the result of 18 months of painstaking simulations and prototyping. The result is one of the most technologically advanced loudspeakers available.

This new tweeter/waveguide DPC-Array delivers amazing accuracy, smoothness, and directivity control to handle the critical vocal range and delicate treble. All S-Series speakers share the same DPC-Array and benefit from our unique timbre matching technique across the entire series. Custom bass drivers made from thin-ply carbon diaphragms (TPCD) can be configured as bass reflex or acoustic suspension and adjusted for listener preference. True full range performance with unparalleled dynamic range and musical finesse.

Technical specifications

Enclosure alignment3-way bass reflex / acoustic suspension
Driver complimentDPC-Array:
28mm Beryllium
28mm(2) Textreme TPCD

Woofers:
180mm(2) Textreme TPCD
Sensitivity89.5dB / 2.83v / 1.0m
Impedance4Ω nominal / 3.0Ω min
Response Linearity80 - 20kHz +/-1.5dB window
Frequency Response (-10dB)Bass reflex: 24 - 32kHz
Acoustic suspension: 36 - 32kHz
Typical In Room bass extensionBass reflex: 20Hz
Acoustic suspension: 23Hz
Dimensions (HxWxD)1119 x 240 x 400mm
44.1 x 9.5 x 15.8”
Weight43.2 kg (95.1 lbs.)
Recommended Amplifier Power100 - 300W RMS
SPL capability @1m (100-20kHz)114.3dB peak
114.0dB peak <3% - 2nd, 3rd Harmonics
CertificationTHX Dominus, THX Ultra
Available finishesPiano Black
Piano White
A-series is only available in specific geographical markets. Please contact your local dealer or distributors.
